2. SO3 Architecture

SO3 follows a conventional operating-system organisation with a user space and a kernel space. It is a monolithic kernel, like Linux: all subsystems and device drivers live in the kernel.

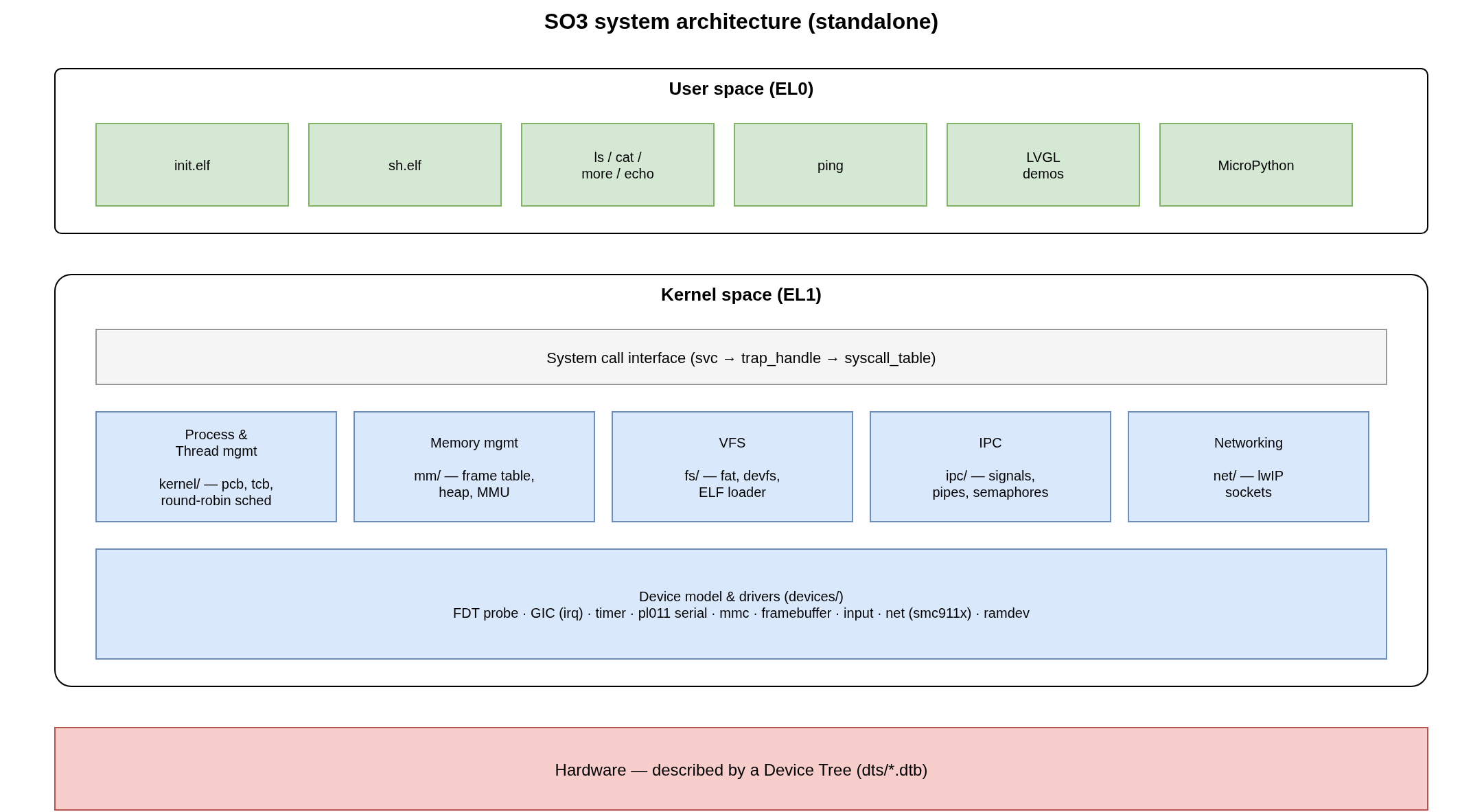

Fig. 2.1 Overview of the SO3 environment (standalone configuration).

The user space is a small set of lightweight applications (init, the shell, ls, cat, more, ping, …) built against the MUSL C library and stored in a root filesystem. The kernel provides the usual subsystems — process/thread management and scheduling, memory management, a virtual filesystem, IPC, networking — plus a device-tree-driven device and driver model.

2.1. Source tree

The kernel source lives under so3/ and is organised by subsystem:

so3/
├── arch/         # architecture-specific code (arm32, arm64)
│   └── arm64/    #   head/boot, exceptions, MMU, context switch, traps
├── kernel/       # processes, threads, scheduler, syscalls, time
├── mm/           # page frame allocator, kernel heap
├── fs/           # VFS, FAT, devfs, ELF loader
├── ipc/          # signals, pipes, semaphores, completions
├── net/          # networking, lwIP TCP/IP stack
├── devices/      # device model + drivers (irq, timer, serial, mmc, fb, …)
├── dts/          # device trees (*.dts → *.dtb)
├── avz/          # the AVZ hypervisor (built with CONFIG_AVZ)
├── soo/          # the SOO framework / SO3 capsules (CONFIG_SOO)
├── configs/      # defconfig files
└── lib/          # in-kernel helper libraries (libfdt, libroxml, …)

The user space lives under usr/ and the surrounding tooling (bootloader, emulator, root filesystem, deployment scripts) at the repository root — see Build System and User Space.

2.2. Exception levels

On ARM64, SO3 uses the architectural exception levels as follows.

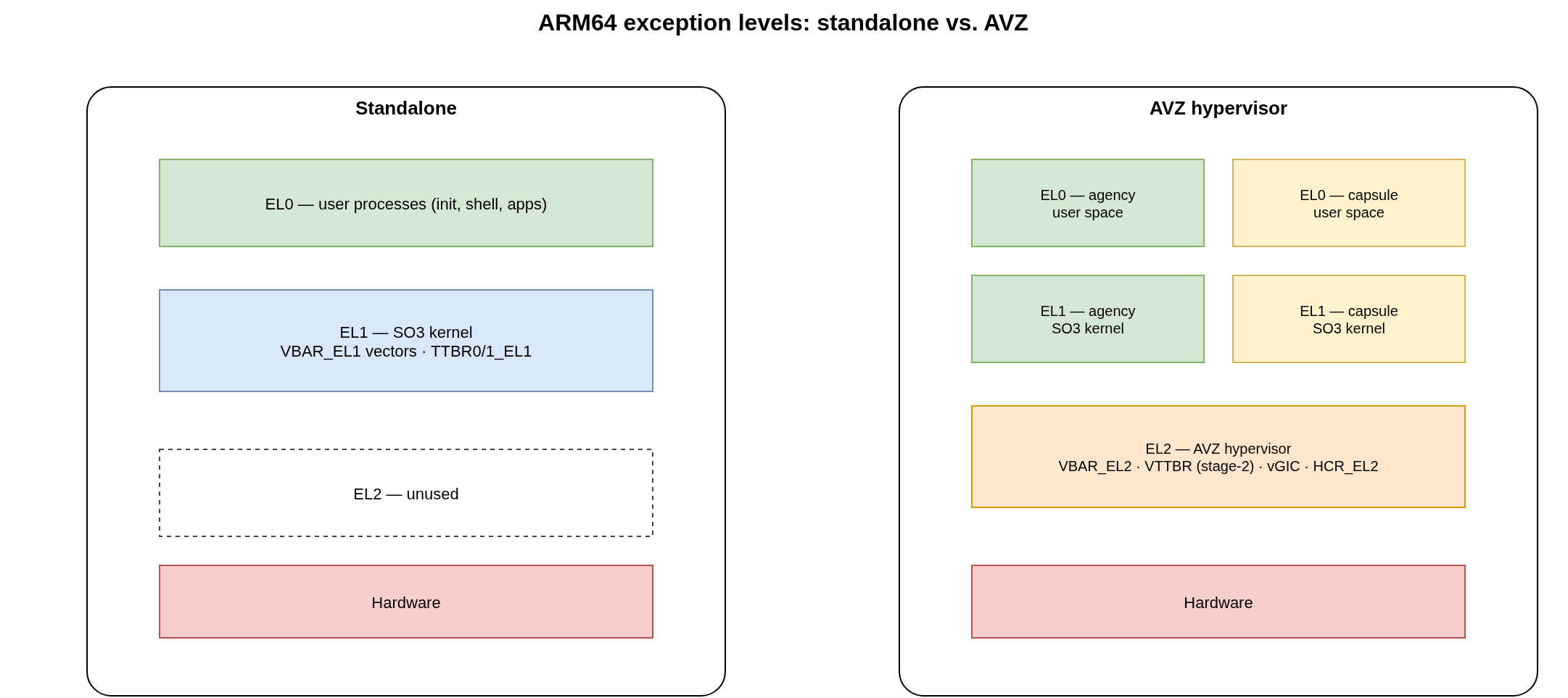

Fig. 2.2 Exception levels in the standalone and AVZ configurations.

• Standalone — user processes run at EL0, the SO3 kernel at EL1. EL2 is unused. The kernel owns VBAR_EL1 (exception vectors) and the TTBR0_EL1 / TTBR1_EL1 translation tables.

• AVZ — the AVZ hypervisor runs at EL2 (VBAR_EL2, stage-2 translation via VTTBR_EL2, HCR_EL2 configured to trap and inject interrupts). Each guest (the agency and any capsule) runs its own SO3 kernel at EL1 with its user space at EL0, isolated by per-domain stage-2 tables.

The exact level a given build targets is selected by CONFIG_AVZ. The same C and assembly files implement both; EL2-specific code is guarded with #ifdef CONFIG_AVZ (for example the TLB-maintenance instructions in arch/arm64/cache.S and the vector handlers in arch/arm64/exception.S).

2.3. Virtual address space

Each process owns a private set of page tables. On ARM64 the low half of the address space (TTBR0_EL1) maps the current user process, and the high half (TTBR1_EL1) maps the kernel.

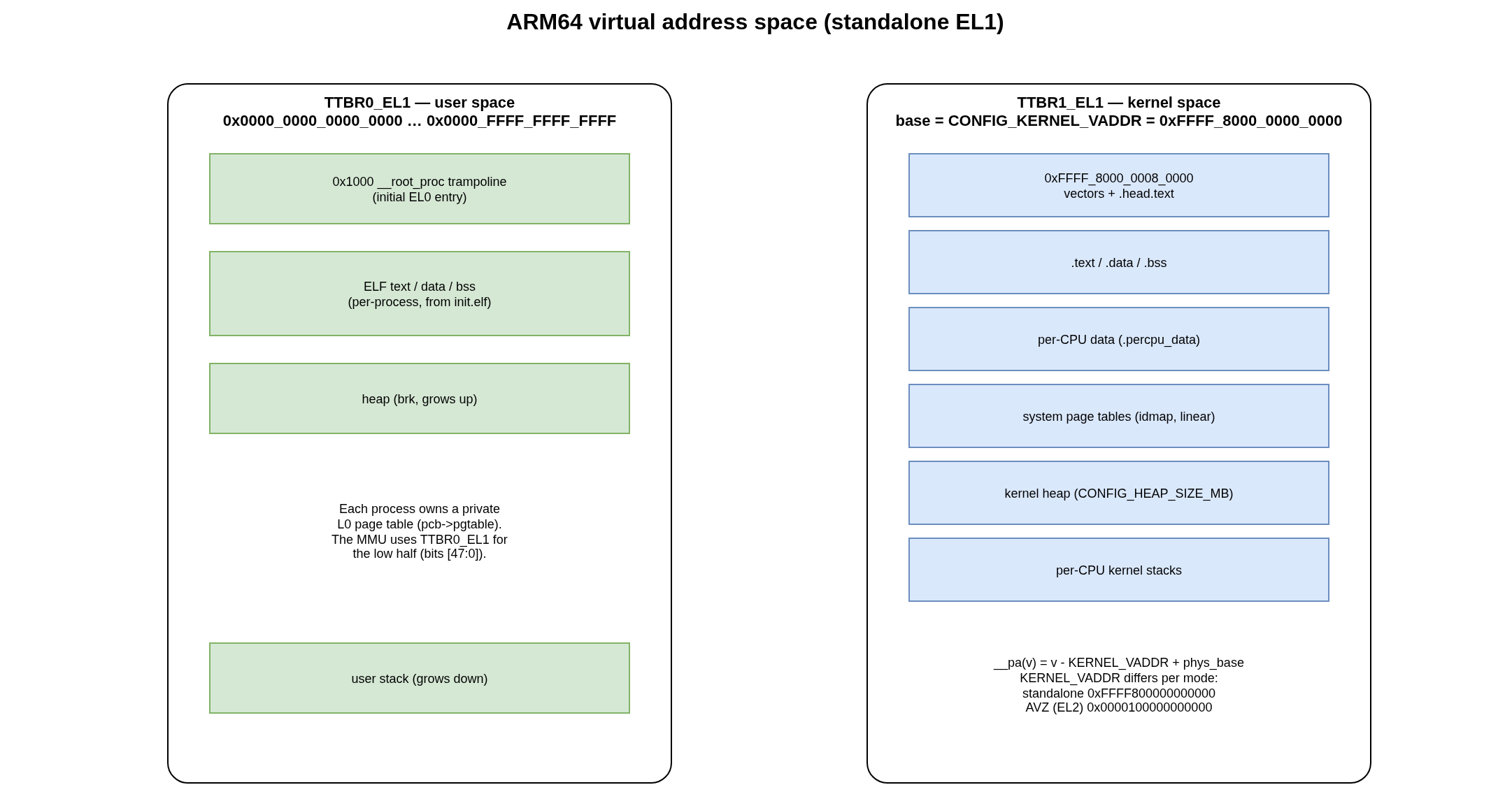

Fig. 2.3 ARM64 virtual address space (standalone, EL1).

The kernel base address is configured by CONFIG_KERNEL_VADDR:

Configuration	CONFIG_KERNEL_VADDR	Notes
standalone (EL1)	0xFFFF800000000000	kernel in the high (TTBR1) half
AVZ (EL2)	0x0000100000000000	hypervisor address space

The __pa() / __va() macros (include/memory.h) translate between kernel virtual addresses and physical addresses using CONFIG_KERNEL_VADDR and the physical RAM base discovered from the device tree. The initial user program is mapped at USER_SPACE_VADDR (0x1000). See Kernel Internals for the page-frame allocator and the MMU code.

2.4. Boot flow

SO3 is started by U-Boot, which loads a FIT image (.itb) containing the kernel, the device-tree blob and the root filesystem. In the AVZ configuration the FIT also contains the hypervisor and the agency guest.

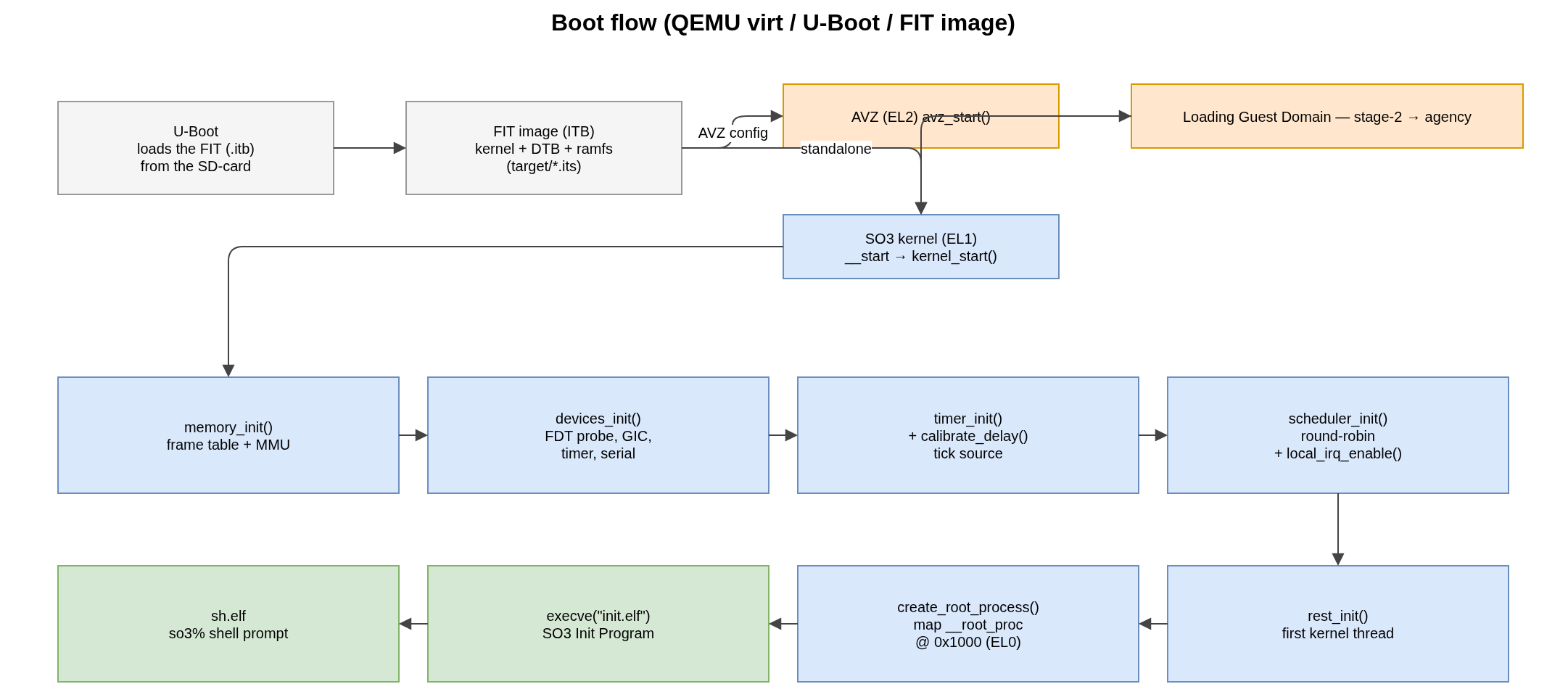

Fig. 2.4 Boot flow from U-Boot to the interactive shell.

1. U-Boot loads the FIT image from the boot medium and jumps to the entry point of the first component.

2. In the AVZ configuration, control enters the hypervisor (avz_start() at EL2); AVZ sets up the stage-2 tables, loads the guest domain and erets into the agency at EL1. In the standalone configuration U-Boot jumps straight to the SO3 kernel entry (__start → kernel_start()) at EL1.

3. The kernel brings itself up: memory_init() (frame table + MMU), devices_init() (device-tree probe, GIC, timer, serial), timer_init() and calibrate_delay(), scheduler_init(), then interrupts are enabled.

4. rest_init() runs as the first kernel thread and calls create_root_process(), which maps the __root_proc trampoline at 0x1000 and enters EL0.

5. The root process execve()s init.elf (the SO3 Init Program), which in turn launches the shell (sh.elf) — the familiar so3% prompt.

The individual steps are described in Kernel Internals; the packaging of the FIT image and the U-Boot/QEMU setup are covered in Build System and User Guide.
