7.4. Directory layout

Everything lives in the checkout — ~/spear in the examples; the tree can sit anywhere. It mixes three quite different kinds of content — application code, multi-gigabyte model weights, and persistent state — so it is worth knowing which is which before running a find over it.

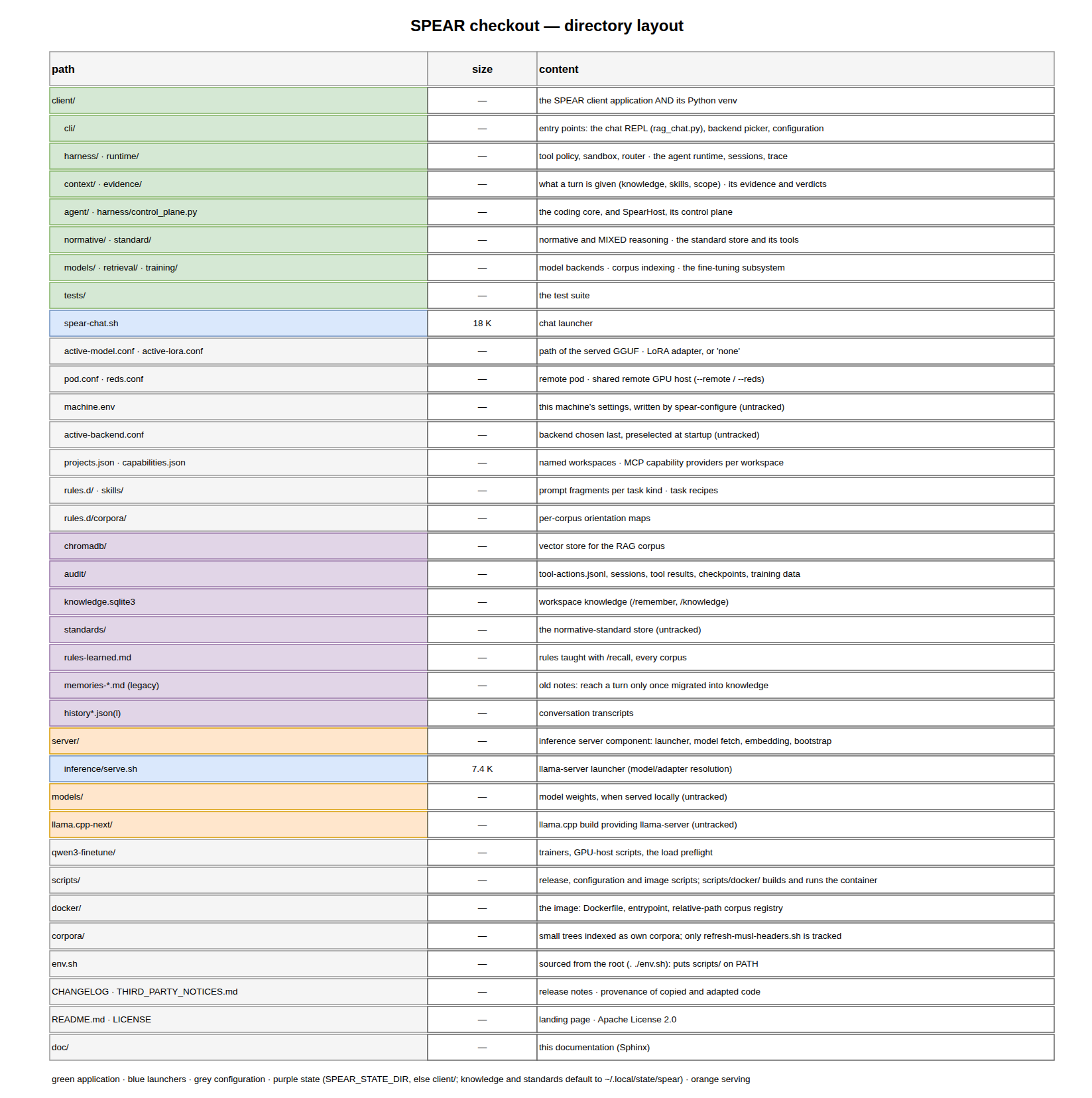

Fig. 7.2 The checkout at a glance: application, models, state.

7.4.1. Top level

Path	Content
client/	The application and its Python virtualenv. bin/python here is the interpreter every command in this documentation uses.
server/	The generic inference server component: the llama-server launcher, model fetching, embedding and the runtime bootstrap.
scripts/	Release, configuration and image scripts (spear-configure, spear-image, spear-consolidate, spearversion.sh); scripts/docker/ builds and runs the container.
docker/	The container image: Dockerfile, the entrypoint and the relative-path corpus registry. It sits at the root rather than under client/ because it draws on both (Container).
models/	Model weights, when a model is served locally. Not tracked.
llama.cpp-next/	The llama.cpp checkout and build providing llama-server, when built locally. Not tracked.
qwen3-finetune/	The fine-tuning working area: LoRA trainers, GPU-host scripts, corpus builders and the load preflight. The governed training path lives in the application instead (Training and fine-tuning).
corpora/	Small trees indexed as their own corpora (musl-headers, posix-api) — they answer questions no product tree contains. Only refresh-musl-headers.sh, which snapshots a toolchain’s headers into musl-headers/, is tracked; the trees themselves are not.
env.sh	. ./env.sh from the tree’s root puts scripts/ on PATH (spear-configure, spear-image).
doc/	This documentation.

Note

spear being both the application directory and the virtualenv root is why bin/, lib/ and include/ sit next to the packages. It is unusual but deliberate: the app and its exact dependency set travel together.

7.4.2. The application

The code is one package per concern, imported from client/ as their common root (from evidence import completion). rag_chat and the other commands are run as files (client/bin/python client/cli/rag_chat.py); the launchers and the image do that for you.

Package	Role
cli/	The commands. The chat client’s entry point is rag_chat.py (startup, argument handling and the REPL loop); the rest of the client is chat_settings.py (session flags and the paths derived from them), corpus_registry.py (projects.json and /corpus), session_workspace.py (the bound project, execution mode, command policy and the file and command primitives), corpus_search.py (retrieval), tool_handlers.py and tool_routing.py (the tool handlers, the registry and the coding core’s host ports), turn_context.py (rules and per-turn context selection), knowledge_commands.py, standard_session.py, session_history.py, project_checks.py, model_io.py, reply_edits.py, operator_input.py, startup_banner.py and terminal_ui.py. Beside it: backend_select.py (the startup backend picker), machine_config.py (spear-configure) and finetune_commands.py.
agent/	The coding core: its loop, tool dispatch, tools and prompt. It imports nothing of SPEAR and talks to a Host interface (Implementation mode).
harness/	The execution harness: control_plane.py (SpearHost), the tool-execution substrate (tool_primitives.py, command_policy.py, workspace.py, sandbox.py, resource_control.py, and tool_runtime.py for the runner and the audit log; none imports rag_chat, so they can be tested in isolation), tool_registry.py / tool_router.py (declarative exposure and structured lifecycle), target_policy.py, refusal_breaker.py, checkpoint.py, and the external capabilities (capabilities.py, capability_gateway.py, mcp_provider.py).
runtime/	The provider-neutral model/tool loop of the normative and general runtime (agent_runtime.py) and the task it runs (agent_context.py); the rest of AgentRuntime comes from one mixin module each: the coding-core turn wrapper (agent_core_turn.py), the model call (agent_model_turn.py), the end of a turn (agent_finalization.py) and what it records (agent_recording.py), with the loop’s notes and demands in agent_notes.py and its change verification in agent_verification.py. Also the UI-free task orchestration (task_controller.py), grounded task truth and compaction (working_state.py, compaction.py), sessions, budgets and the runtime trace.
evidence/	The evidence plane: canonical evidence, source epochs and the implementation verdict (completion.py), the project’s own build and test commands (project_build.py), and the evidence guards.
context/	What a turn is given: deterministic context selection, the workspace context, workspace knowledge (workspace_knowledge.py, with knowledge_migration.py for legacy Markdown memories), skills, and the request’s class and scope (answer_scope.py, request_scope.py).
normative/	The MIXED pipeline (mixed_orchestration.py, Mixed mode), the constraint packet, structural coverage and applicability, the source predicates and conformance-check bindings.
standard/	The normative store: ingestion, structure, semantic records, retrieval, review and the standard’s tools.
models/	Provider-neutral model turns (ModelTurn) and raw OpenAI-compatible turns (RawTurn) for the coding core, in model_backend.py; operator-only control of the serving process and of a training host.
retrieval/	Embedding and corpus ingestion into Chroma (index_corpus.py, index_dir.py).
training/	The fine-tuning subsystem: capture, curation, governance, readiness, frozen bundles and the operator control plane, none of it model-visible (Training and fine-tuning); python -m training is its command line.
tests/	The test suite; see Testing.
eval/ · benchmarks/	Evaluation harnesses and the benchmark runner.

7.4.3. Configuration

File	Meaning
active-model.conf	Absolute path of the GGUF to serve, read by spear-chat --local when it starts the local server; SPEAR_MODEL in the environment overrides it.
active-lora.conf	LoRA adapter path, or the literal none. SPEAR_LORA overrides.
pod.conf	Connection details for the remote vLLM pod used by spear-chat --remote. The SSH port changes on every pod restart.
reds.conf	Host, port and model of a shared GPU server used by spear-chat --reds. Stable host: the launcher only tunnels to it.
machine.env	Settings specific to THIS machine, untracked: the SPEAR_* path overrides a deployment needs and nothing a clone should inherit. Every spear-* launcher sources it if it is there, and runs on the defaults if it is not.
active-backend.conf	The backend chosen last, preselected by the startup picker. Runtime state, not versioned.
projects.json	Named workspaces the chat can open, mapping a short name to an absolute path and a project kind.
capabilities.json	External capability providers registered per workspace (MCP servers over stdio). SPEAR_CAPABILITIES_FILE overrides the path.
tool-guide.md	The tool usage guide handed to the model.
rules.d/	Prompt fragments injected per task kind. rules.d/corpora/<name>.md holds a corpus’s orientation map (Retrieval).
skills/	Task recipes (build debugging, rootfs packages, code quality…), each optionally opening with a SKILL.md frontmatter block read by skill_library.py (Retrieval).

7.4.4. Content the deployment owns

rules.d/, skills/ and benches/ are content, not code — and a deployment’s own rules, its learned skills and the bench that rates it are exactly the material that does not belong in a public tree. Each therefore answers to an environment variable:

Variable	Default	What it holds
SPEAR_RULES_DIR	<app>/rules.d	the always-injected rules, and corpora/<name>.md under it
SPEAR_SKILLS_DIR	<app>/skills	the skill library, read and written — save_skill lands here
SPEAR_BENCH_DIR	<app>/benches	the acceptance benches a project declares by bare name

The default is the in-tree directory, so a plain checkout behaves exactly as it did; no default points outside the checkout, which is what keeps a private path out of public source. An empty value counts as unset rather than naming the filesystem root.

The failure mode these replace is quiet: load_rules() returns "" for a directory that is not there and the skill library returns [], so a session whose content had moved ran with none of it and said nothing. The same three variables are read by scripts/docker/build.sh when it bakes an image (The optional inputs), so one setting covers both.

7.4.5. Persistent state

These live in the state directory: SPEAR_STATE_DIR, or client/ when it is not set. The knowledge store and the standard store are the exception: without SPEAR_STATE_DIR they default to ~/.local/state/spear.

Path	Content
chromadb/	The vector store. Rebuildable from the sources it indexes.
audit/tool-actions.jsonl	Append-only audit trail of mutating tool attempts. Metadata only: assignments that look like secrets are redacted before the record is written.
audit/runtime-trace.jsonl	Optional privacy-bounded runtime observability.
audit/sessions/ / audit/tool-results/ / audit/checkpoints/	Resumable task snapshots, referenced large results, and pre-mutation rollback bytes. Active sessions may reference the latter two.
audit/training-data/	Canonical training episodes, the source a bundle freezes from.
rules-learned.md	Rules taught at runtime with /recall. Injected into every session, under a token budget.
knowledge.sqlite3	Workspace knowledge (/remember, /knowledge). SPEAR_KNOWLEDGE_DB overrides the path.
standards/	The normative-standard store. SPEAR_STANDARDS_ROOT moves it alone.
memories-*.md / memories-*.md.metadata.json	Legacy remembered notes. No longer shown to a turn; their content reaches one only once migrated into workspace knowledge.
history*.json / history-archive.jsonl	Conversation transcripts, including per-project ones.
llama-server.log	Log of the local llama-server that spear-chat --local starts.

7.4.6. Entry points

The repository provides these scripts; linking them onto PATH under the names below — a one-line wrapper in ~/.local/bin each — is the usual arrangement, and the rest of this documentation uses the names:

Name	Script	What it does
spear-chat	client/spear-chat.sh	the assistant
spear-corpus	client/spear-corpus.sh	the corpus registry (/corpus in the chat)
spear-index	client/bin/python client/retrieval/index_dir.py	index any tree
spear-reindex	client/bin/python client/retrieval/index_corpus.py	rebuild a build-system corpus with the curated walk
spear-server	server/inference/serve.sh	llama-server alone
spear-docker	scripts/docker/spear-docker.sh	the assistant in a container (Container)

spear-chat --help lists every flag — permissions, model, corpus — and is answered before any server is started or any corpus resolved, so it costs nothing. The launcher invokes the venv interpreter by path rather than sourcing bin/activate: a virtualenv hardcodes its own absolute path, so a relocated tree activates into a directory that no longer exists and python3 silently falls through to the system interpreter.

spear-corpus is a wrapper around corpus_registry.handle_corpus_command, which is also what /corpus calls inside the chat: one registry, one implementation, and one environment — it reads machine.env exactly as spear-chat does.

7.4.7. This documentation

doc/
  Makefile                       make html | latexpdf | …
  requirements.txt               Sphinx toolchain (local and CI)
  source/
    conf.py                      Sphinx configuration
    rstFlatTable.py              the ``flat-table`` directive
    *.rst                        the chapters
    _static/theme_overrides.css  small readability overrides
    img/
      spear.drawio               every diagram, one page each (source)
      SPEAR-<Page>.drawio.png    the pages exported for the HTML build
      261008_SPEAR_Overview.png  the overview figure, a standalone image

Diagrams follow the convention of the sibling projects. spear.drawio is the source of every diagram but the overview, and is edited directly in draw.io or the VS Code extension. Each page the documentation uses is exported to SPEAR-<Page>.drawio.png (one file per page, named after the page), and the exported PNG is committed next to the .drawio in the same change. The overview figure of the introduction is a standalone raster image, not exported from spear.drawio, and is replaced as a whole. From the command line, with the drawio snap:

$ cd doc/source/img
$ mkdir -p ~/snap/drawio/common/x && cp spear.drawio ~/snap/drawio/common/x/
$ xvfb-run -a drawio -x -f png --scale 1.5 --border 10 -p 6 \
      -o ~/snap/drawio/common/x/SPEAR-Layout.drawio.png \
      ~/snap/drawio/common/x/spear.drawio --no-sandbox --disable-gpu

-p is the 1-based page index (7 is the Layout page). The snap is confined: it cannot read /opt nor any hidden directory in $HOME (~/.cache included), which is why the file is staged under ~/snap/drawio/common.

7.4.8. Building

$ cd ~/spear/doc
$ make html
$ xdg-open build/html/index.html

Sphinx and the RTD theme come from the system Python (/usr/bin/sphinx-build), not from the spear virtualenv, which deliberately carries only the application’s runtime dependencies. doc/requirements.txt lists the toolchain for anyone who prefers an isolated environment:

$ pip install -r doc/requirements.txt

The same file is what .github/workflows/docs.yml installs. That workflow builds these pages on every push to main and publishes them to GitHub Pages, so the published site is always the documentation of the current main; a pull request builds the documentation but never publishes it. The build must stay dependency-free with respect to the application — the documentation imports no project module, which is why a Sphinx toolchain and a checkout are the whole of what CI needs.
