1. Build System

SO3 is built with Infrabase, a thin orchestration layer on top of bitbake. A set of meta-layers (build/meta*) provides the recipes; a single configuration file (build/conf/local.conf) selects what to build; and a handful of wrapper scripts in scripts/ drive the whole thing — building the kernel, the user space, U-Boot, the root filesystem and the FIT image, then packaging them onto a virtual SD-card.

_images/so3_build.png

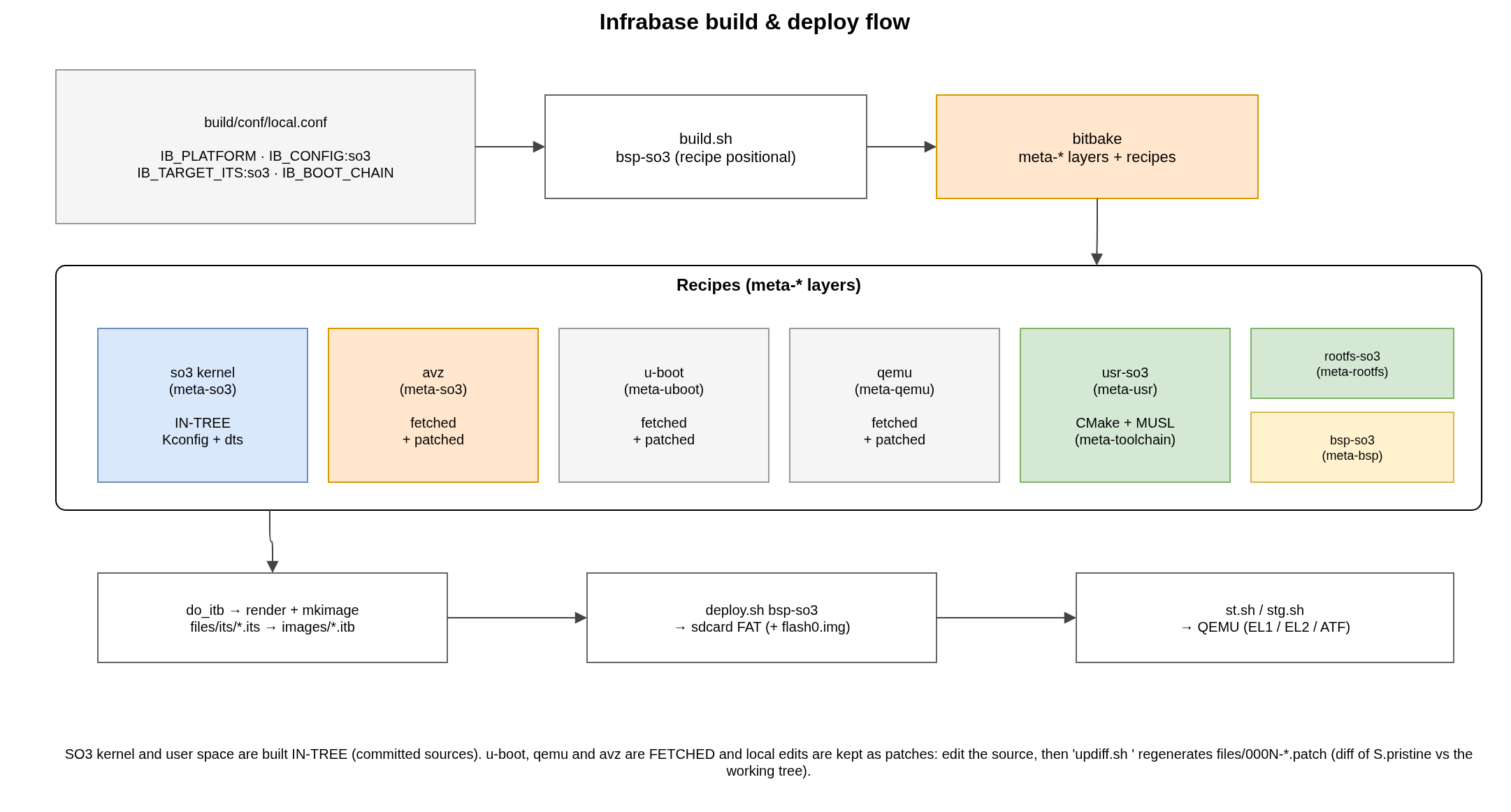

Fig. 1.1 From local.conf through the meta-layer recipes to a bootable image.

The SO3 kernel and user space are built in tree (directly from the committed so3/ sources). The other components — U-Boot, QEMU, the AVZ hypervisor and (optionally) ARM-TF/OP-TEE — are fetched from upstream and local changes are kept as patches (see fetched components).

1.1. Prerequisites

Infrabase drives bitbake, so the host needs the usual Yocto/bitbake build dependencies plus the SO3 image tooling (device-tree-compiler, u-boot-tools, mtools, dosfstools, rsync, parted, the QEMU build dependencies, …) and a few cross-toolchains that are not built by the layers. The canonical, continuously-tested list is the base container recipe docker/Dockerfile.toolchains — mirror it when setting up a bare host. For development, the same environment is available as a ready-made build container: scripts/dbuild.sh --build then scripts/dbuild.sh build.sh bsp-so3 (or bare dbuild.sh for a shell) runs any front-end script inside it, with the repository bind-mounted at its own path and the container running as the calling user — see docker/README.md.

The cross-toolchains that must be on PATH:

Used for

Toolchain (prefix)

Selected by

Kernel (and AVZ), bare-metal

aarch64-none-elf- (64-bit) / arm-none-eabi- (32-bit)

CONFIG_CROSS_COMPILE in the kernel defconfig

U-Boot, GNU/Linux

aarch64-none-linux-gnu- (virt64/rpi4_64) / arm-linux-gnueabihf- (virt32)

IB_TOOLCHAIN in local.conf

User space, MUSL

aarch64-linux-musl / arm-linux-musleabihf

built automatically by meta-toolchain — no action

Note

The MUSL user-space toolchains are produced into the bitbake work tree by the meta-toolchain layer; there is no manual step for them. Only the bare-metal (kernel/AVZ) and GNU/Linux (U-Boot) toolchains must be installed on the host.

To avoid installing anything on the host, build inside the container instead — see Running with Docker.

1.2. Getting started

Everything is anchored on the repository root. Source env.sh once per shell:

source env.sh

This exports IB_ROOT_DIR, sets BBPATH/BUILDDIR to build/, and prepends scripts/ and the bundled bitbake to PATH so the active tree wins. From then on the build.sh / deploy.sh / st.sh commands are on the path. See User Guide for the end-to-end walkthrough.

1.3. Meta-layers

Layer

Provides

meta

base bitbake classes — notably patch.bbclass (the fetch/patch/updiff machinery) and the privileged-helper plumbing.

meta-so3

the SO3 kernel recipe (so3_<version>.bb, built in tree) and the AVZ hypervisor recipe (avz_<version>.bb); both are named after the current release and pinned by PREFERRED_VERSION_* (see Release process).

meta-usr

the user space (usr-so3, CMake + MUSL toolchain): a committed lvgl-free base, plus opt-in add-ons layered as patches via overrides — :lvgl (LVGL + slv + demos) and :soo (capsule user space).

meta-bsp

board support: bsp-so3 assembles the FIT image (do_itb) and writes the boot media (do_deploy_boot); bsp-linux does the same for the Linux agency and bsp-capsules for an agency running SO3 capsules (see SO3 Capsules (SOO framework)).

meta-uboot

the U-Boot bootloader (fetched + patched).

meta-qemu

the patched QEMU emulator (the virt machine with PL111/PL050/ absmouse — see Display & Input (QEMU virt)).

meta-linux

the Linux kernel recipe (fetched from kernel.org + patched), plus the opt-in soo override that builds Linux as the capsule agency (see SO3 Capsules (SOO framework)).

meta-rootfs

builds the root filesystem image (rootfs.fat).

meta-toolchain

builds the MUSL cross-toolchains used by the user space.

meta-atf

ARM Trusted Firmware and OP-TEE (only for the secure boot chains).

meta-filesystem

creates and populates the SD-card image (privileged losetup/ mkfs/mount via sudo -n).

build/conf/bblayers.conf is regenerated automatically from this fixed list; do not edit it by hand.

1.4. Configuration — build/conf/local.conf

A few IB_* variables select the target and the deployment mode:

Variable

Meaning

IB_PLATFORM

target platform: virt64 (default), virt32, rpi4_64, …

IB_CONFIG:so3:<plat>

the SO3 kernel defconfig (e.g. virt32_fb_defconfig).

IB_TARGET_ITS:so3:<plat>

the FIT image to assemble — this is what selects the deployment mode.

IB_BOOT_CHAIN

the firmware chain: ""/uboot (bare U-Boot), atf+uboot (ARM-TF), or full (ARM-TF + OP-TEE).

IB_ATF_PLAT / IB_OPTEE_PLAT / IB_ATF_EXTRA_OPTS

ARM-TF / OP-TEE platform identifiers and build options (secure chains only).

The same virt64 kernel can be deployed three ways purely by choosing the ITS, without a per-platform IB_PLATFORM:so3 override:

IB_TARGET_ITS:so3:virt64

Deployment

virt64_so3

SO3 standalone (kernel at EL1)

virt64_avz

SO3 as a plain AVZ guest (AVZ at EL2, CONFIG_SOO=n, see AVZ Hypervisor)

virt64_capsule

an SO3 capsule (see SO3 Capsules (SOO framework))

IB_BOOT_CHAIN is a weak assignment so a capsule deployment can override it. For the QEMU virt machine, ""/uboot boots a bare U-Boot, atf+uboot boots through ARM-TF (EL3 → EL2), and full additionally loads OP-TEE.

Note

Those three ITS targets build SO3 only. The same tree can also build Linux as the capsule agency: enable the soo override (EXTRA_OVERRIDES .= ":soo") and pick a SOO Linux config (IB_CONFIG:linux:<plat> = "virt64_soo_defconfig"). The meta-linux soo layer then fetches and patches Linux into the agency, and the bsp-capsules recipe deploys it beside the capsules — see SO3 Capsules (SOO framework).

1.5. The build & deploy scripts

build.sh runs bitbake to build artefacts:

Option

Action

<recipe> (or -x <recipe>)

build a recipe and its dependency tree. A BSP name (bsp-so3, bsp-linux) pulls everything (kernel + U-Boot + rootfs + FIT); a component (usr-so3, qemu, avz, so3, uboot, filesystem, …) builds just itself. -x is optional — the recipe may be a bare argument. Opens the sudo -n session automatically for recipes that need root at build time (filesystem, bsp-linux).

-c

clean the recipe first, then rebuild.

-l / -v

list all recipes / verbose bitbake output.

deploy.sh then writes the boot media (and opens the sudo -n session the privileged tasks need): deploy.sh <recipe> (-x optional) deploys it — a BSP writes the whole image (rootfs → p2 + FIT/ITB → p1), a component (e.g. usr-so3) deploys just its part. -l / -v list / verbose. Deploy does not recompile: it consumes what build.sh already produced (rootfs.cpio, the FIT), so the workflow is edit → build.sh → deploy.sh. A deploy with no prior build fails clearly rather than silently rebuilding.

Important

build.sh bsp-so3 compiles the BSP but does not create the SD-card image itself: the empty filesystem/sdcard.img.<platform> is produced by the separate, privileged filesystem recipe (losetup/mkfs/parted). deploy.sh populates and writes that image but does not create it, so a deploy against a fresh tree fails until the image exists. The canonical first-build sequence is therefore three steps:

build.sh bsp-so3        # compile kernel + user space + U-Boot + rootfs + FIT
build.sh -x filesystem  # create + format the SD-card image (privileged, once)
deploy.sh bsp-so3       # populate the rootfs and write the boot media

Once the image exists, later edits only need build.sh -x <recipe> + deploy.sh bsp-so3 — the filesystem step is a one-off.

Note

build.sh / deploy.sh take the recipe as a positional argument (-x is accepted but optional); -l lists every recipe. A BSP name builds/deploys the whole BSP, a component name just that recipe — the former -a / -k / -b / -r / -f flags are gone.

Important

The SO3 kernel is built in tree, and bitbake does not track the in-tree so3/so3/so3.bin as a task output. After rebuilding the kernel (build.sh -x so3), run deploy.sh bsp-so3 to regenerate the FIT image and refresh the SD-card — otherwise you boot the previous kernel.

1.6. The SO3 kernel recipe

so3_<version>.bb configures and builds the kernel straight from so3/so3; the mechanics below are the still-familiar Kbuild ones.

1.6.1. Configuration (Kconfig)

Each subsystem carries a Kconfig; every option becomes a CONFIG_* symbol stored in so3/so3/.config and exposed as include/generated/autoconf.h. IB_CONFIG:so3:<plat> names the defconfig (so3/so3/configs/) the recipe loads. The target architecture (CONFIG_VIRT64/CONFIG_RPI4_64/CONFIG_VIRT32…) and the mode (CONFIG_AVZ, CONFIG_SOO) are driven from .config; menuconfig is available for interactive tweaks. The recipe records the last-built architecture in a .ib_last_arch marker and runs make distclean on an arch switch.

1.6.2. Linker script and asm-offsets

The kernel is linked with an architecture-specific script (arch/arm64/so3.lds) that places the exception vectors, .head.text, the code/data/bss, the per-CPU area, the system page tables, the driver initcall sections, the heap and the per-CPU stacks. Sizes come from CONFIG_* symbols passed with --defsym; the base address is CONFIG_KERNEL_VADDR. Assembly needs the byte offsets of C structures — arch/arm64/asm-offsets.c produces a header of #define OFFSET_* values shared by C and assembly, exactly as Linux does.

1.6.3. Device trees

Hardware is described by device trees in so3/so3/dts/. The .dts sources are compiled to .dtb blobs and shipped to the kernel inside the FIT image; the kernel parses the blob at boot to discover RAM and devices (Kernel Internals). The QEMU virt nodes for the framebuffer and input devices live here too (Display & Input (QEMU virt)).

1.7. FIT image, ITS and boot media

SO3 is started by U-Boot, which loads one or more FIT images (.itb) — each a single file bundling a payload, its device tree and, for the OS images, a root filesystem. The .its templates live in the BSP layer (meta-bsp/recipes-bsp/so3/files/its/ for SO3, meta-bsp/recipes-bsp/linux/files/its/ for the Linux agency) and reference the component trees through ${IB_*_PATH} placeholders. The do_itb task renders each template into the gitignored output dir <ctx>/images/ (so3/images/ or linux/images/) — expanding ${IB_SO3_PATH}, ${IB_AVZ_PATH}, ${IB_LINUX_PATH} and ${IB_ROOTFS_PATH} to absolute paths — then assembles the .itb there with mkimage (there is no committed target/ tree):

.its template

Contents

virt64_so3.its

standalone: SO3 kernel + DTB + ramfs

<plat>_avz.its

AVZ ITB: the AVZ hypervisor binary + its device tree only — the guest lives in a separate ITB (see Two-ITB AVZ boot). One per platform: virt64_avz, rpi4_64_avz, verdin_imx8mp_avz

<plat>_so3_guest.its

SO3 guest ITB: guest SO3 kernel + DTB + ramfs, loaded by AVZ.

<plat>_linux_guest.its

Linux agency guest ITB: Linux kernel + guest DTB + initrd, loaded by AVZ (meta-bsp/.../linux/files/its/).

<plat>_capsule.its

a capsule image (virt64_capsule, rpi4_64_capsule)

virt32_so3.its / rpi4_64_so3.its / verdin_imx8mp_so3.its

the 32-bit / RPi4 / Verdin standalone variants

<plat>_lvperf.its

the LVGL-benchmark image driven by the docker/ lvperf containers and the CI (virt64_lvperf, virt32_lvperf — see LVGL — Light and Versatile Embedded Graphics Library)

do_deploy_boot writes the resulting .itb from <ctx>/images/ into the FAT (boot) partition of filesystem/sdcard.img.<platform>. For the ARM-TF chains (atf+uboot / full), __do_platform_boot_chain (meta-bsp/.../bsp_virt64.inc) also builds filesystem/flash0.img — BL1 at offset 0 plus a FIP (fiptool) bundling BL2/BL31/U-Boot (and OP-TEE for full) at 256 KiB — which QEMU loads as pflash.

1.7.1. Two-ITB AVZ boot

When a guest runs on AVZ, the hypervisor and its guest are packaged as two separate FIT images rather than one: the AVZ ITB (<plat>_avz.itb — the hypervisor binary + avz_dt only) and a guest ITB. The guest is either an SO3 guest (<plat>_so3_guest.itb — SO3 kernel + DTB + ramfs, from bsp-so3) or the Linux agency (<plat>_linux_guest.itb — Linux kernel + guest DTB + initrd, from bsp-linux with IB_BOOT_CHAIN = "full").

The trigger throughout is the selected ITS ending in _avz. do_itb then also builds the guest ITB, whose name is derived from the AVZ ITS by replacing the _avz suffix with ${IB_GUEST_SUFFIX} — _so3_guest by default (bsp-so3), _linux_guest for the Linux agency (bsp-linux). So virt64_avz → virt64_so3_guest or virt64_linux_guest. (Deriving from IB_TARGET_ITS rather than IB_PLATFORM keeps the underscore naming on platforms whose IB_PLATFORM carries a hyphen, e.g. verdin-imx8mp.)

At deploy time the platform glue stages both images plus a per-platform uEnv_<plat>_avz.txt (or, on verdin, a boot_avz.scr boot script). U-Boot loads both ITBs to staging addresses and jumps through its guest-boot command, which enters AVZ with the AVZ FIT in x0 and the guest ITB in x1; AVZ’s loadAgency() then loads the guest from x1 (see AVZ Hypervisor). When the selected ITS is not an _avz one (a bare standalone SO3/Linux image), the deploy falls back to the single-ITB bootm path.

Note

The virt64 (QEMU) and rpi4_64 (hardware) two-ITB boots are runtime-verified — on the Raspberry Pi 4 with both a Linux agency guest and a plain SO3 guest, as well as the full SOO capsule configuration. The verdin_imx8mp ITS split + guest-boot wiring is in place but still to be validated on hardware.

1.8. Working with fetched components (updiff)

U-Boot, QEMU and AVZ are fetched from upstream into the repository root (u-boot/, qemu/, avz/ — git-ignored) and patched. Local changes are kept as a numbered patch series, regenerated with updiff rather than edited by hand:

  1. Edit the working tree directly (e.g. qemu/hw/arm/virt.c).

  2. Build to test (build.sh -x qemu).

  3. Regenerate the patches: updiff.sh qemu.

updiff (patch.bbclass) only looks at what changed in the working tree since it was attached. Each edited file is folded into its patch, computed by replaying the series on the pristine upstream snapshot (${S}.pristine, taken right after fetch): several patches of one patch set touching a file become one, a patch left empty goes away, and a file with no patch gets a new one, in build/meta-<c>/recipes-<c>/<c>/files/000N-*.patch. If the patches of an edited file changed since the attach, updiff stops and writes nothing. Generated trees are excluded via the per-recipe IB_UPDIFF_EXCLUDE variable (for QEMU: build subprojects GNUmakefile, which keeps the meson/ninja output and the fetched subprojects out of the patchset).

Note

The SO3 kernel and user space are versioned in the repository, so they carry no patch series — you simply edit and rebuild them.

1.9. User space and toolchains

The user-space applications are built with CMake against the MUSL C library. The MUSL cross-toolchains (aarch64-linux-musl / arm-linux-musleabihf) are produced by meta-toolchain into the bitbake work tree — there is no manual toolchain step. See User Space.
