5. SO3 Capsules (SOO framework)

An SO3 Capsule (acronym S3C) is a lightweight, self-contained guest that runs at EL1 on top of the AVZ hypervisor. A capsule does not own any hardware; it cooperates with an agency domain that owns the devices, through split (frontend/backend) drivers.

Note

SO3 Capsule / S3C is the current name and acronym for the concept that older code and papers called a Mobile Entity (ME). The source tree uses the S3C acronym in identifiers (S3C_desc_t, S3C_state_t, S3C_domID, MAX_S3C_DOMAINS …) and capsule in prose. The legacy ME spelling does not appear in the code.

5.1. The agency: Linux + the SOO framework

The capsule model needs a Linux agency: Linux owns the devices and provides the backend drivers and the higher-level services that capsules talk to — the backend half of the frontend/backend split, the vbstore server and the capsule-management user space (injector, melist, saveme / restoreme, the EMISO engine).

The so3 build system can fetch and build that agency itself, the same way it fetches AVZ, U-Boot and QEMU — it need not be built out of tree. The linux recipe pulls mainline Linux from kernel.org; an opt-in soo override (meta-linux/recipes-linux/soo and meta-usr/recipes-usr/soo) patches it into the agency and adds the SOO user space, and the bsp-capsules recipe deploys Linux as the guest on top of AVZ. It is selected with EXTRA_OVERRIDES .= ":soo" and a SOO defconfig (virt64_soo_defconfig); see Build System.

The SOO additions — both the Linux kernel side and the agency user space — are applied by the soo override as vendored file:// patch sets (meta-linux/recipes-linux/soo and meta-usr/recipes-usr/soo; the SOO_URI list is local patches, not a remote fetch). Only the base Linux kernel itself is fetched remotely (mainline from kernel.org). Those patches derive from the SOO framework, developed in the separate soo project.

What is in this so3 repository is the capsule (guest) side and the hypervisor support for it:

  • the frontend drivers (soo/drivers/);

  • the vbus / vbstore clients and the event-channel / grant-table glue (soo/kernel/);

  • the hypervisor-side capsule build / inject / snapshot code (so3/avz/ — capsule_build.c, injector.c).

A capsule-capable guest is produced by virt64_capsule_defconfig (enabling CONFIG_SOO). The AVZ demonstration shipped in this repository (the virt64_avz.its AVZ ITB plus the separate virt64_so3_guest.its guest ITB — see Two-ITB AVZ boot) boots a plain SO3 guest (CONFIG_SOO=n), which is enough to exercise the hypervisor; running actual capsules additionally requires the Linux agency (built with the soo override described above).

5.2. Split (frontend/backend) drivers

Every virtual device a capsule uses is a split driver: a frontend in the capsule talks to a backend in the Linux agency through a shared memory ring and an event channel (set up with grant tables and event channels).

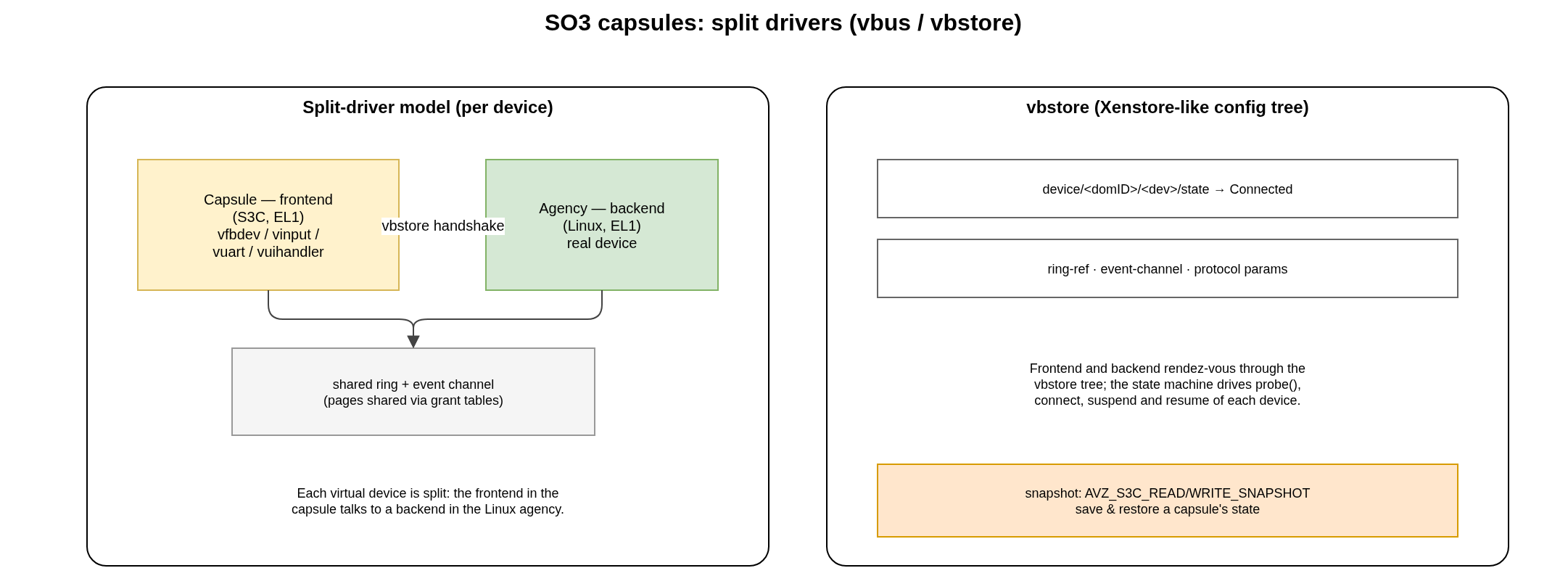

_images/so3_capsule.png

Fig. 5.1 Split drivers and the vbstore configuration tree.

The frontends shipped in soo/drivers/ are:

Frontend

Purpose

vfbdevfront

virtual framebuffer (display output for the capsule)

vinputfront

virtual input (keyboard / mouse events)

vuartfront

virtual serial console

vuihandlerfront

UI handler / application channel

vlogsfront

logging service

vsenseledfront / vsensejfront

Raspberry Pi Sense HAT LED matrix and joystick

vdummyfront

reference/test driver

All frontends share the common machinery in soo/drivers/vdevfront.c and register through vbus as vbus_drivers.

5.3. vbus and vbstore

The frontend and backend find and configure each other through two Xen-inspired mechanisms:

vbstore

A small, hierarchical configuration store (soo/kernel/vbstore/), analogous to Xenstore. Devices advertise their state and parameters at paths such as device/<domID>/<dev>/state, …/ring-ref and …/event-channel.

vbus

The virtual bus (soo/kernel/vbus/) that enumerates devices and drives their state machine. When a frontend and its backend have both published their ring reference and event channel in vbstore and reached the Connected state, I/O can flow. The same state machine drives probe, suspend and resume.

5.4. Capsule state and the snapshot mechanism

A capsule’s state is tracked by S3C_state_t (soo/include/soo/uapi/soo.h): S3C_state_stopped, S3C_state_living, S3C_state_suspended, S3C_state_resuming, S3C_state_awakened, S3C_state_killed, S3C_state_terminated, S3C_state_dead (and the S3C_state_hibernate / S3C_state_booting intermediates).

AVZ provides a low-level snapshot primitive — AVZ_S3C_READ_SNAPSHOT and AVZ_S3C_WRITE_SNAPSHOT — that saves and restores a capsule’s memory image and its vbstore state. This is the building block the SOO framework uses to move a capsule’s execution state; the higher-level orchestration that drives it lives in the soo repository, not here.
