4. Display & Input (QEMU virt)

On the QEMU virt machine SO3 drives a small set of ARM PrimeCell devices for graphics and human input. These are not part of the upstream virt model; they are added by the SO3 QEMU patch (build/meta-qemu/.../files/0001-qemu-8.2.2-r0/0001-virt.c.patch) and described to the kernel in the device tree (so3/dts/virt64.dts / virt32.dts).

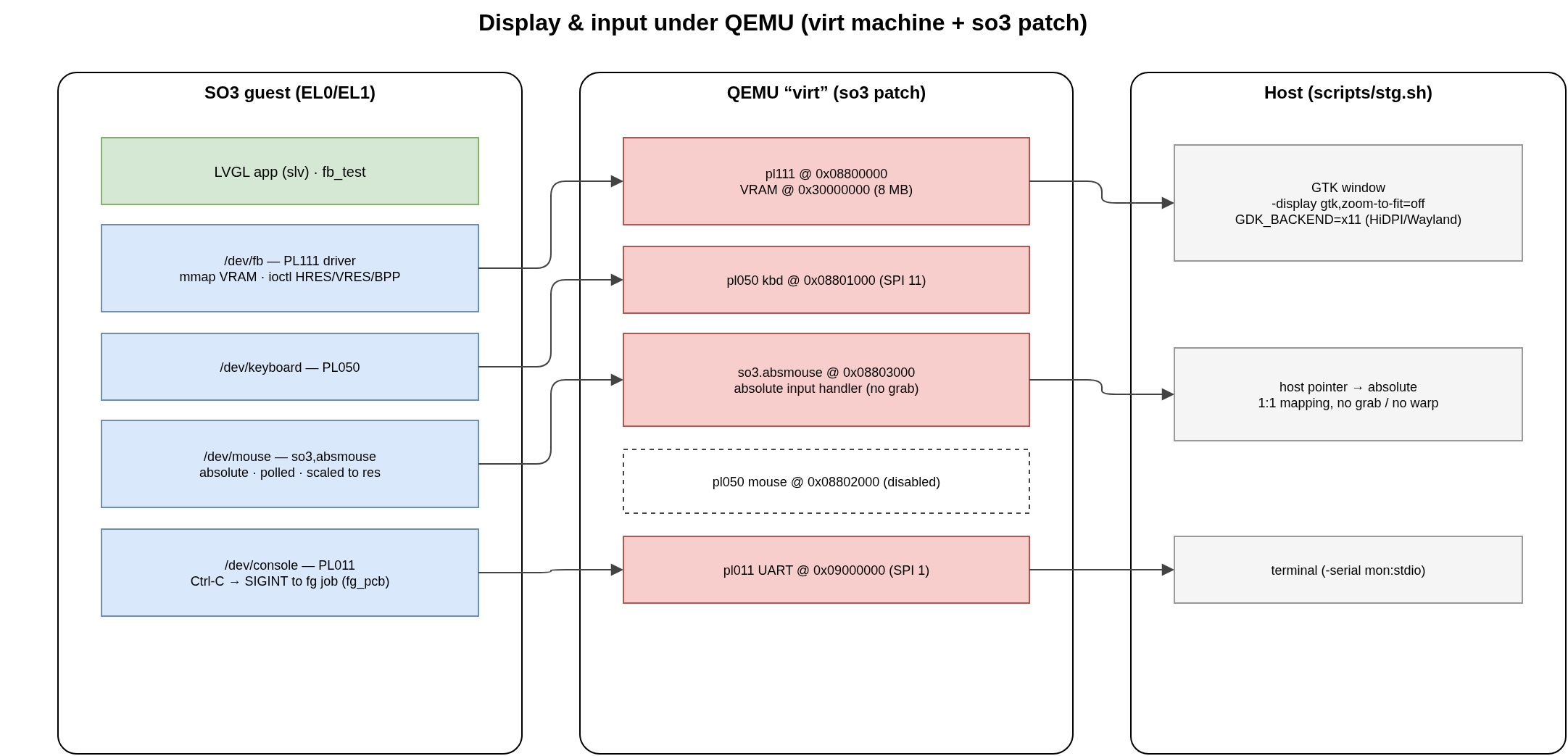

_images/so3_io.png — Fig. 4.2 The display and input path: SO3 `/dev` nodes ↔ the QEMU `virt` devices ↔ the host GTK window.

Device	MMIO base	IRQ	`/dev` node	Role
PL111 CLCD	`0x08800000`	—	`/dev/fb`	framebuffer (1024×768, 32 bpp)
PL050 KMI0	`0x08801000`	SPI 11	`/dev/keyboard`	PS/2 keyboard
`so3,absmouse`	`0x08803000`	—	`/dev/mouse`	absolute pointer (polled)
PL050 KMI1	`0x08802000`	SPI 12	—	PS/2 relative mouse (disabled)
PL011 UART	`0x09000000`	SPI 1	console	serial console + Ctrl-C

4.1. Framebuffer (PL111)

The graphical output is an ARM PL111 Color LCD Controller (devices/fb/pl111.c, compatible = "arm,pl111"). The driver programs a fixed 1024×768, 32 bpp mode and points the controller at an 8 MB VRAM region the QEMU patch maps at guest-physical 0x30000000.

User space reaches the framebuffer through /dev/fb:

int fd = open("/dev/fb", 0);

uint32_t hres, vres, size, bpp;
ioctl(fd, IOCTL_FB_HRES, &hres);   /* 1 -> 1024            */
ioctl(fd, IOCTL_FB_VRES, &vres);   /* 2 -> 768             */
ioctl(fd, IOCTL_FB_SIZE, &size);   /* 3 -> bytes           */
ioctl(fd, IOCTL_FB_BPP,  &bpp);    /* 5 -> 32              */
/* IOCTL_FB_IS_REAL == 4: is the framebuffer mmap-able?    */

uint32_t *fb = mmap(NULL, size, 0, 0, fd, 0);   /* 0x00RRGGBB pixels */

The mapping is non-cacheable: the CPU writes must reach VRAM immediately so that QEMU’s dirty-page tracking refreshes the window. usr/src/fb_test.c is a minimal, LVGL-free example that draws colour bars and a moving square straight into /dev/fb — handy for checking the display path in isolation.

Note

virtfb.c is a fake framebuffer (no mmap, IOCTL_FB_IS_REAL = 0) used only by special configurations; the real graphical path is the PL111.

4.2. Keyboard (PL050)

The keyboard is an ARM PL050 KMI PS/2 interface (devices/input/kmi0.c + ps2.c, compatible = "arm,pl050,keyboard"), IRQ-driven on SPI 11 and exposed as /dev/keyboard. Key codes are read with the GET_KEY ioctl.

Note

QEMU routes PL050 events only to the focused GTK window. The LVGL keypad indev also needs an lv_group of focusable widgets to do anything useful; the pointer (below) needs no group.

4.3. The absolute pointer (`so3,absmouse`)

The historical mouse is a PL050 PS/2 device, which is relative: it reports deltas, not positions. Under QEMU that forces pointer-grab / warp mode, which is fragile — it breaks under Wayland (the compositor forbids pointer warping) and the guest cursor drifts away from the host cursor, differently per monitor and per HiDPI scale factor. No host-side tweak fully fixes a relative pointer.

SO3 therefore uses an absolute pointer, so3,absmouse. It is a tiny read-only MMIO device added by the QEMU patch at 0x08803000:

Offset	Register	Meaning
`0x00`	`X`	absolute X, `0 … INPUT_EVENT_ABS_MAX` (32767)
`0x04`	`Y`	absolute Y, `0 … INPUT_EVENT_ABS_MAX`
`0x08`	`BTN`	buttons — bit 0 left, bit 1 right, bit 2 middle
`0x0c`	`MAX`	`INPUT_EVENT_ABS_MAX` (scale reference)

On the QEMU side the device registers an absolute input handler (INPUT_EVENT_MASK_ABS | INPUT_EVENT_MASK_BTN) and activates it. Registering an absolute handler switches QEMU into absolute-pointer mode: there is no grab and no warp, and the host pointer maps 1:1 onto the guest. Activation moves the handler to the head of the list so that button events reach it rather than the still-present (but unused) relative PL050 mouse — qemu_input_find_handler() returns the first handler whose mask matches the event.

On the guest side devices/input/absmouse.c registers DEV_CLASS_MOUSE (i.e. /dev/mouse). It carries no IRQ: the LVGL/slv read callback polls it once per refresh through the GET_STATE ioctl, and the driver scales the raw 0 … MAX coordinates to the display resolution (set via SET_SIZE). The relative PL050 mouse (kmi1.c) is kept in the tree but its dts node is status = "disabled" so there is a single /dev/mouse.

4.4. The host GTK window (`stg.sh`)

The graphical launcher stg.sh starts QEMU with the GTK display backend (-display gtk,zoom-to-fit=off):

GTK, not SDL — the SDL backend does not present the PL111 console surface (the window stays black even though the framebuffer is rendered correctly); GTK shows it, and its View menu lists every console.
XWayland for HiDPI — stg.sh exports GDK_BACKEND=x11 (plus GDK_SCALE=1). On a fractionally-scaled HiDPI Wayland panel, GTK reports pointer coordinates in a different scale than the framebuffer surface, so the absolute mapping comes out offset (host and guest cursors shifted) — fine on a 1× external monitor, wrong on the laptop panel. Routing GTK through XWayland gives a uniform pointer-to-surface mapping, so the cursors coincide on every monitor. It is harmless on a native X11 session.

st.sh is the headless sibling (-display none): no window, console only, used for non-graphical work and CI.

4.5. Console Ctrl-C (SIGINT)

The serial console is the PL011 UART (devices/serial/pl011.c). Its interrupt handler turns a typed Ctrl-C (0x03) into one of two actions, depending on whether a thread is currently reading the console (tested via the read_lock mutex):

A shell is at its prompt (a console read is in progress). The handler sets serial_intr; pl011_get_byte() returns ETX and the line editor cancels the current line and reprints the prompt — the shell is not killed.
A foreground application is running (no console read in progress). The handler delivers SIGINT to the foreground job. The target is the global fg_pcb, maintained by sys_do_wait4() in kernel/process.c: when the shell blocks waiting on a child it sets fg_pcb = child, and restores it to itself when the child exits. (Using fg_pcb rather than current() matters because, in IRQ context, current() is usually the idle thread — the foreground app is asleep.)

Terminating a multi-threaded application correctly (an LVGL app runs an slv tick pthread alongside its main loop) takes coordinated teardown:

ipc/signal.c (sig_check) defers a fatal default-action signal (SIGINT/SIGTERM/SIGKILL) to the process main thread. Otherwise a spawned thread — which wakes far more often — would call exit_group() and zombie only itself, leaving the main thread alive.
kernel/thread.c (discard_tcb_in_pcb) cooperatively cancels the spawned threads: each is flagged killed and woken, and self-terminates at its next blocking point; the last one signals threads_active so the main thread’s wait completes.
kernel/schedule.c (next_thread, the round-robin policy) still schedules a thread whose pcb is already ZOMBIE if it is killed or it is the pcb’s main_thread — these run kernel-only teardown code and never return to user space, so they must get the CPU to finish exiting.

See Kernel Internals for the broader process/thread model.
